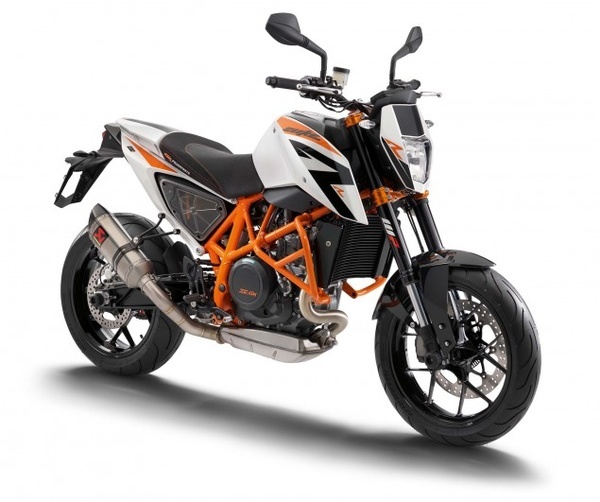

DUKE R 2014

Detailní popis



ENGINE Design Single-cylinder, 4-stroke, spark-ignition engine, liquid-cooled Displacement 690 cm³ Bore 102 mm Stroke 84.5 mm Performance 51.5 kW (69.1 hp) Starting aid Electric starter, automatic decompressor Transmission 6-speed, claw shifted Engine lubrication Pressure circulation lubrication with two rotor pumps Primary gear ratio 36:79 Secondary gear ratio 16:40 Cooling system Liquid cooling system, continuous circulation of cooling liquid with water pump Clutch APTC™ Anti-hopping clutch in oil bath / hydraulically operated Ignition system Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment CHASSIS Frame Tubular space frame made from chrome molybdenum steel, powder-coated Fork WP Suspension Up Side Down Shock absorber WP Suspension with Pro‑Lever linkage Suspension travel front 150 mm Suspension travel rear 150 mm Brake system front Disc brake with radially mounted four-piston brake caliper; floating brake disc Brake system rear Disc brake with single-piston brake caliper, floating Brake discs - diameter front 320 mm Brake discs - diameter rear 240 mm Chain 5/8 x 1/4” (520) X‑Ring Steering head angle 63.5° Wheel base 1,466±15 mm Ground clearance (unloaded) 192 mm Seat height (unloaded) 865 mm Total fuel tank capacity approx. 14 l
Unleaded premium fuel (95 RON) Weight without fuel approx. 149.5 kg
