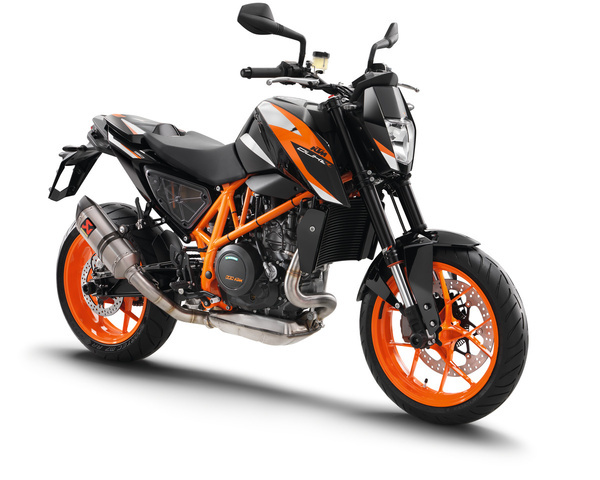

DUKE R ABS 2017

Detailní popis

 Novinkou je, že nyní 390DUKE, 690DUKE, DUKE R, 690 ENDURO a SMC byly upraveny pro to aby motocykly splňovaly normu řidických oprávnění A2, kde je hlavním splnění kritéria 02kw/kg. Díky mapování všechny jmenované modely splní normu pro začínající jezdce.

TECHNICKÉ PARAMETRY Design Single-cylinder, 4-stroke, spark-ignition engine, liquid-cooled Displacement 690 cm³ Bore 102 mm Stroke 84.5 mm Performance 55 kW (74 hp) Starting aid Electric starter, automatic decompressor Transmission 6-speed, claw shifted Engine lubrication Pressure circulation lubrication with two rotor pumps Primary gear ratio 36:79 Secondary gear ratio 16:40 Cooling system Liquid cooling system, continuous circulation of cooling liquid with water pump Clutch APTC™ Anti-hopping clutch in oil bath / hydraulically operated Ignition system Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment Frame Tubular space frame made from chrome molybdenum steel, powder-coated Fork WP upside-down Ø 43 mm Shock absorber WP Suspension with Pro‑Lever linkage Suspension travel front 150 mm Suspension travel rear 150 mm Brake system front Brembo monoblock four-piston radial fixed calliper, brake disc Brake system rear Brembo single-piston floating calliper, brake disc Brake discs - diameter front 320 mm Brake discs - diameter rear 240 mm Chain X-Ring 5/8 x 1/4 Steering head angle 63.5° Wheel base 1,466±15 mm Ground clearance (unloaded) 192 mm Seat height (unloaded) 865 mm Total fuel tank capacity approx. 14 l
Unleaded premium fuel (95 RON) Weight without fuel approx. 149.5 kg
