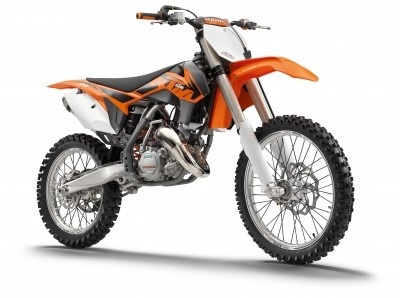

SX 2012

Detailní popis



Technical Details Engine   Engine type Single cylinder, 2-stroke Displacement 124.8 cc Bore/stroke 54/54.5 mm Compression ratio - Starter/battery Kickstarter Transmission 6 gears Carburetor Keihin PWK 38S AG Control Exhaust control Lubrication Mixture oil lubrication 1:40 Gear ratios 13:32 15:30 17:28 20:28 19:23 22:24 Primary ratio 23:73 Final drive 13:50 Cooling Liquid cooling Clutch Wet multi-disc clutch, Magura hydraulics Ignition Kokusan     Chassis   Frame Central double-cradle-type 25CrMo4 Subframe Aluminium Handlebar Renthal, Aluminium Ø 28/22 mm Front suspension WP-USD, Closed Cartridge, Ø 48 mm Rear suspension WP-Monoshock with linkage Suspension travel front/rear 300/330 mm Front/rear brakes Disc brake 260/220 mm Front/rear rims 1.60 x 21"; 2.15 x 19" Excel Front/rear tires 80/100-21"; 100/90-19" Chain 5/8 x 1/4" Silencer Aluminium Steering head angle 63.5° Wheel base 1,480 ± 10 mm Ground clearance 395 mm Seat height 992 mm Tank capacity, approx. 7.5 l Weight, without fuel, approx. 90.8 kg
