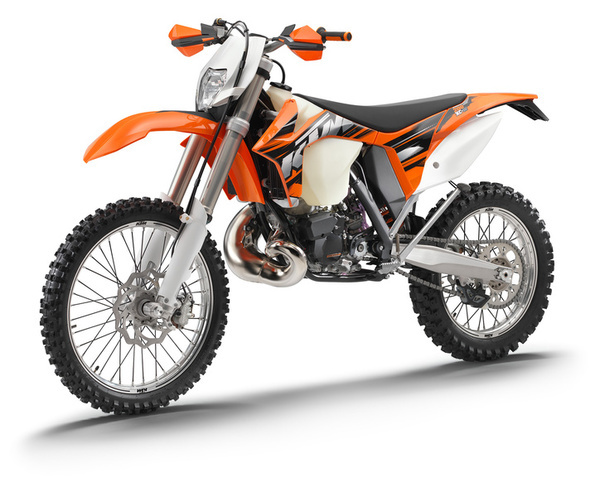

XC-W 2013
Kód produktu: 300XCW2013
Motocykl pro závody Crosscountry bez homologace pro provoz na pozemních komunikacích. PDS.
Detailní popis
Design 1-cylinder 2-stroke engine, water-cooled, with reed intake and exhaust control Displacement 293 cm³ (17.88 cu in) Bore 72 mm (2.83 in) Stroke 72 mm (2.83 in) Starting aid Kick starter and electric starter Gearbox 6-gear, claw shifted Primary transmission 26:72 Secondary ratio 13:50 Clutch Multidisc clutch in oil bath/hydraulically activated Ignition Contactless controlled fully electronic ignition with digital ignition adjustment, type Kokusan Frame Central tube frame made of chrome molybdenum steel tubing Fork WP Suspension Up Side Down 4860 MXMA PA Shock absorber WP Suspension PDS 5018 DCC Suspension travel Front 300 mm (11.81 in) Suspension travel Rear 335 mm (13.19 in) Brake system Disc brakes, brake calipers on floating bearings Brake discs - diameter Front 260 mm (10.24 in) Brake discs - diameter Rear 220 mm (8.66 in) Chain 5/8 x 1/4" Steering head angle 63.5° Wheelbase 1,482±10 mm (58.35±0.39 in) Ground clearance unloaded 355 mm (13.98 in) Seat height unloaded 960 mm (37.8 in) Total fuel tank capacity approx. 10 l (2.6 US gal) Super unleaded gasoline mixed with 2-stroke engine oil (1:60) Weight without fuel approx. 102 kg (225 lb.)
